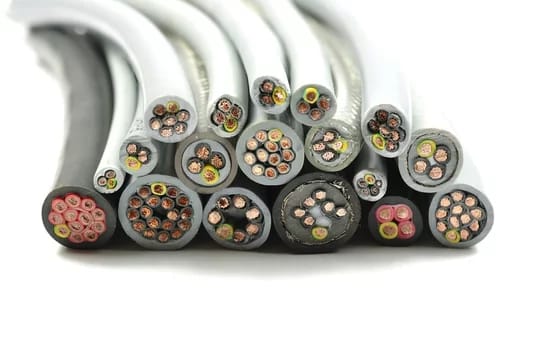

PVC Sheathed Multicore Cable

Multi-Core PVC Sheathed Cables

Multi-Core PVC Insulated Cables

Multi-Core PVC Insulated Cables cables are electrical cables with multiple insulated conductors bundled together within a single outer sheath. Here are key features and applications:

Multi-Core PVC Insulated Cables

Key Features:

  1. Multiple insulated conductors (2-24 or more)
  2. Color-coded or numbered conductors for identification
  3. Outer sheath protects against environmental factors
  4. Flexible or rigid construction
  5. Various materials (copper, aluminum, fiber optics)

Applications:

  1. Industrial control systems
  2. Power distribution
  3. Telecommunications
  4. Data transmission
  5. Audio/video installations
  6. Medical equipment
  7. Aerospace and defense
Multi-Core PVC Insulated Cables
Multi-Core PVC Insulated Cables

Types of Multi-Core Cables:

  1. Power Cables (e.g., 3-core, 4-core, 5-core)
  2. Control Cables (e.g., 2-core, 4-core, 8-core)
  3. Signal Cables (e.g., audio, video, data)
  4. Fiber Optic Cables (multi-core or multi-fiber)
  5. Hybrid Cables (combine power, control, and signal conductors)
Specifications:
  1. Conductor size (AWG or mm²)
  2. Insulation material (PVC, XLPE, etc.)
  3. Outer sheath material (PVC, PE, etc.)
  4. Temperature rating
  5. Voltage rating
  6. Frequency range
Standards and Certifications:
  1. IEC (International Electrotechnical Commission)
  2. UL (Underwriters Laboratories)
  3. CE (Conformité Européene)
  4. RoHS (Restriction of Hazardous Substances)
